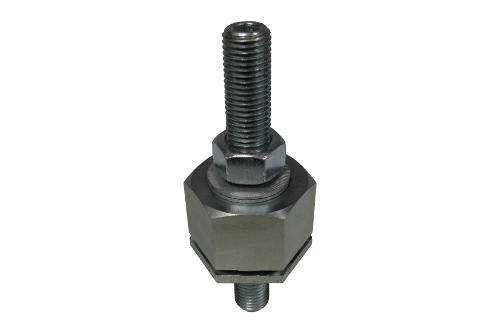

Description DNV rules for ships/ High Speed light craft, Issue Jan 2001 Point 4 Chapter 3 Section1 F202, establishes that standard height adjusters are not acceptable for leveling, due to cyclic bending moments that the studs and bolts are subjected to. This is the reason why leveling of mounts using shims beneath the mounts is the only recommended method for leveling. Our Height Adjuster – Hi Sec also share also this method and that is the reason why shims have been developed. In order to achieve a fine leveling Hi-Sec height adjusters allow a final precise adjusting with security. Type H(mm) M1 M2 ADJUSTABLE(mm) MILLING HEAD NORDLOCK COMMERCIAL SCREW D.A.F. Weight(gr) Code HI SEC 110 M16 M12 5 Y N N 46 357 708077 110 M16 M16 5 Y N N 46 514 708007 130 M20 M20 5 N Y N 46 775 708018 110 M20 M16 5 Y N Y 55 1095 708079 160 M20 M20 10 Y N Y 55 1011 708029 160 M20 M20 10 N Y N 55 1096 708005 200 M24 M24 10 N Y N 120 2234 708011
