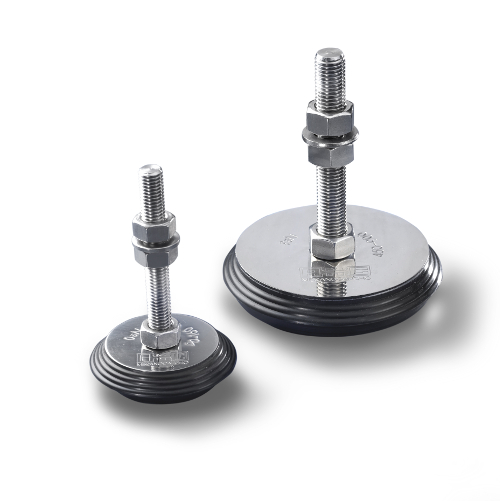

Description The levelling SV Low-type anti vibration mounts are used in cases where light or heavy machines are not fixed to the floor or ground. Height is adjusted by means of a screw, once the machine has been assembled. The wide contact between the base of the machine guarantees good overall stability. Lift the machine and insert the mount under it. Insert and turn the screw manually until it can be wound into the thread in the mount . Adjust the height of the machine by turning the screw. When the machine is level , lock the mounts using the checknuts. Type A(mm) B(mm) C(mm) D(mm) LOAD kg MIN LOAD kg MAX Weight(gr) Code 000 B 43 16 M-8 45 40 80 257 147000 00 B 60 18 M-10 81 60 120 334 147001 0 B 70 20 M-12 89 90 160 286 147002 1 B 85 25 M-12 89 130 350 382 147003 2 B 100 20 M-14 109 270 600 574 147004 3 B 120 25 M-16 116 450 900 867 147005 4 B 140 33 M-16 116 700 1200 1300 147006 5 B 160 36 M-16 116 1100 1750 1556 147007 00 B STAINLESS STEEL 60 18 M-10 81 60 120 334 147014 0 B STAINLESS STEEL 70 20 M-12 89 90 160 286 147013 1 B STAINLESS STEEL 85 25 M-12 89 130 350 382 147012 2 B STAINLESS STEEL 100 20 M-14 109 270 600 574 147015 3 B STAINLESS STEEL 120 25 M-16 116 450 900 867 147011 4 B STAINLESS STEEL 140 33 M-16 116 700 1200 1300 147016 5 B STAINLESS STEEL 160 36 M-16 116 1100 1750 1556 147017
