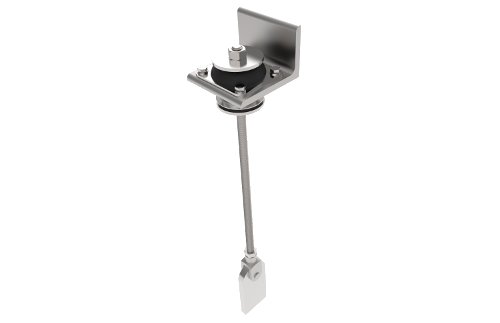

Description The Marine Exhaust – ST mounts are designed to suspend exhaust ducts in Marine applications. Their particular design allows the duct to displace when exposed to thermal expansions and contractions. There are 11 different models to suit hanging loads from 40Kg to 2000Kg. All the Marine Exhaust – ST mounts are equipped with interlocking metal parts to withstand to high compression and traction loads. This fail-safe feature provides an extra safety for the application. Type A(mm) B(mm) C(mm) D(mm) E(mm) F(mm) G(mm) H(mm) I(mm) Shore Max. Load(kg) Code TYPE A 50 325 118 10 50 110 100 M12 – 45 Sh 75 709101 50 325 118 10 50 110 100 M12 – 60 Sh 140 709105 50 325 118 10 50 110 100 M12 – 45 Sh 100 709111 50 325 118 10 50 110 100 M12 – 60 Sh 180 709115 80 477 130 15 70 120 120 M16 – 40 Sh 140 709121 80 477 130 15 70 120 120 M16 – 60 Sh 300 709125 80 477 130 15 70 120 120 M16 – 60 Sh 500 709131 80 477 130 15 70 120 120 M16 – 70 Sh 750 709135 Type A(mm) B(mm) C(mm) D(mm) E(mm) F(mm) G(mm) H(mm) I(mm) Shore Max. Load(kg) Code TYPE B 100 485 115 10 40 175 150 M20 50 65 Sh 1100 709141 100 485 115 10 40 175 150 M20 50 75 Sh 1570 709145 Type A(mm) B(mm) C(mm) D(mm) E(mm) F(mm) G(mm) H(mm) I(mm) Shore Max. Load(kg) Code TYPE C 100 500 130 12 50 225 200 M30 66 60 Sh 2000 709151
