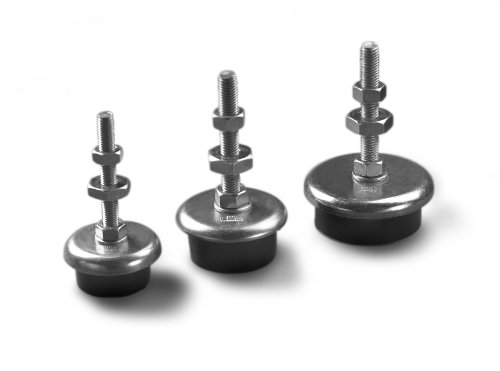

Description The levelling SV-type anti vibration mounts are used in cases where light or heavy machines are not fixed to the floor or ground. Height is adjusted by means of a screw, once the machine has been assembled. The wide contact between the base of the machine guarantees good overall stability. Lift the machine and insert the mount under it. Insert and turn the screw manually until it can be wound into the thread in the mount . Adjust the height of the machine by turning the screw. When the machine is level , lock the mounts using the checknuts. Type A(mm) B(mm) C(mm) D(mm) LOAD kg MIN LOAD kg MAX Weight(gr) Code 000 45 23 M-8 48 20 80 91 143001 00 60 28 M-10 81 60 120 235 143002 0 70 34 M-12 89 90 160 350 143003 1 85 32 M-12 89 130 350 456 143004 2 100 40 M-14 109 270 600 702 143005 3 120 37 M-16 116 450 900 954 143006 4 140 55 M-16 116 700 1200 1513 143007 5 160 60 M-16 116 1100 1750 1865 143008 6 180 70 M-24 138 1500 2500 3034 143009 7 210 75 M-24 138 2100 3750 4248 143010
