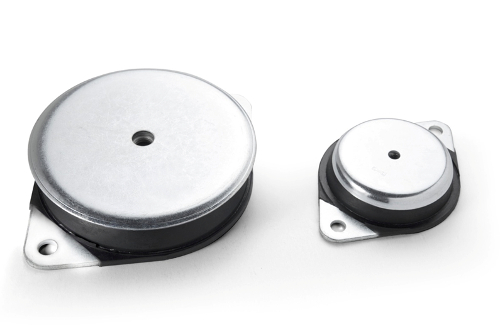

Description DSD Bell anti vibration mounts design provides excellent radial and axial flexibility making them most suitable for the suspension of machines where isolation of both vertical and horizontal vibration components occur. DSD mounts comprise of two flat metal parts. The top metal part is circular with either a tapped central boss or an internal welded nut for attaching the mount to the machine frame .The lower metal part has an oval shape with two holes to allow fixing to the support structure of the machine . DSD Bell mountings are particularly suitable for applications with low to medium dynamic amplitudes which enables the mountings stiffness rates to provide effective isolation . Suitable for HVAC, Ventilators, rotating pumps, torque or frequency converters, electric motors or power units. Type A(mm) B(mm) C(mm) D(mm) E(mm) F(mm) G(mm) H(mm) I(mm) Weight(gr) Load (kg) Shore Code DSD 40 Bell 43 19 M-6 19 29 52 64 6,25 40 48 4 45 Sh 134028 10 60 Sh 134029 15 75 Sh 134030 DSD 60 Bell 60 23 M-6 14 39 76 95 6,5 60,5 128 15 45 Sh 134031 25 60 Sh 134032 45 75 Sh 134033 DSD 80 Bell 86 27 M-8 25 65 100 120 8,5 85 232 75 45 Sh 134034 110 60 Sh 134035 150 75 Sh 134036 DSD 100 Bell 100 28 M-10 22 67 124 149 10,5 103,5 465 90 45 Sh 134037 160 60 Sh 134038 220 75 Sh 134039 DSD 150 Bell 150 37 M-14 34 114 182 214 12 155 1110 130 45 Sh 134040 250 60 Sh 134041 350 75 Sh 134042 DSD 200 Bell 200 44 M-18 35 140 240 280 15 208 2736 500 45 Sh 134043 825 60 Sh 134044 1250 75 Sh 134045
