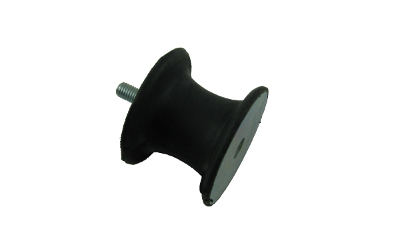

Bobbin – Diabolo, Type B

$20.03 $24.64
Description Male threaded mounts on one end and female threaded mount on the other. Standard rubber and steel Type A(mm) B(mm) D(mm) H(mm) COMPRESSIONLOAD Max. daN COMPRESSION DEFLECT. mm SHEAR LOAD Max. daN SHEAR DEFLECT. mm C(mm) Weight(kg) Code F.000N 12 12 8 10 4 1,5 0,4 1,5 M-5 0,005 129101 F.00N 20 19 13,5 16,5 12 2,5 3 5 M-6 0,016 129102 F.3 30 25 24 20 40 5 4 4,5 M-8 0,046 129103 F.0N 40 28 19 25 30 5 2,5 4,5 M-10 0,084 129104 M-8 0,072 128006 F.9 40 30 26 25 45 3 4 4,5 M-8 0,074 129105 F.7 44 42 25 25 50 6 9 6 M-8 0,09 129106 F.1 60 44 24 20 40 5 7 5 M-8 0,167 129107 F.2 60 44 34 20 75 5 12 6 M-8 0,183 129108 F.2 60 44 34 25 75 5 12 6 M-10 – 128010 F.4 60 60 50 25 150 8 30 10 M-10 0,271 129109 F.8 60 36 37 25 100 7 20 8 M-10 0,202 129110 F.5 80 70 70 35 300 9,5 55 9,8 M-14 0,616 129111 F.6 95 76 80 45 400 9,5 70 8 M-16 0,94 129112
