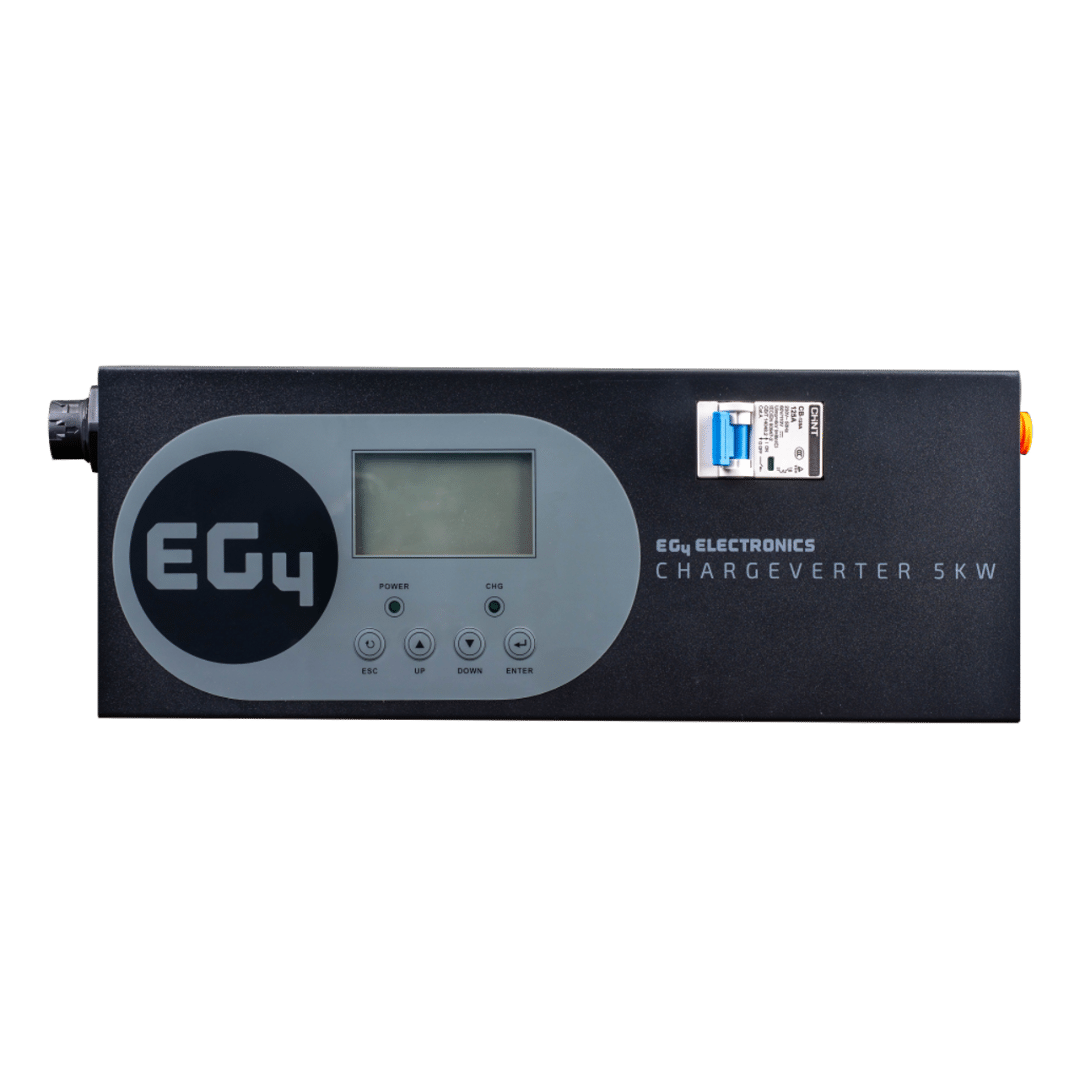

EG4 Chargeverter – GC | 48V 100A Battery Charger 5120W Output | 240/120V Input Details: You have full control over the charging process thanks to the adjustable current feature that allows you to set the charging rate anywhere between 0 Amps and 100 Amps. This means that as little as one hour can fully charge a 5.12kWh server rack battery! The EG4 Chargeverter is also compatibile with gas generators. Traditional inverters can be adversely affected by “dirty power,” or an unreliable sine wave output, from budget generators, but the EG4 Chargeverter simply plugs directly into a generator. Featuring a nominal battery voltage of 48V, the EG4 Chargeverter also has 240VAC or 120V* input capabilities. This allows you to connect the Chargeverter to a wide range of power sources. The EG4 Chargeverter can also be connected to the grid via an EV charger outlet, allowing you to tap into your solar system. Finally, the EG4 Chargeverter is equipped with a built-in breaker, which provides an extra layer of protection for your valuable equipment. Important: The Chargeverter can produce heat excess of 55°C/151°F. We recommend mounting on appropriate backing such as cement board, with sufficient clearance around the unit to allow airflow to the unit. Do not block the air vents. *The 120V configuration requires a cable adapter (not included). Introducing the EG4 Chargeverter 5KW AC Charger, a high-performance battery charger designed for reliability and versatility. With its 48V 100A capacity and 5120W output, this charger ensures efficient power supply for various applications. Its compact design and dual 240/120V input make it suitable for diverse setups. Bad Weather Resilience: Charge batteries during low light conditions using a generator (up to 100A) Ideal for unpredictable weather patterns Protection from “Dirty Power”: Guards against unreliable sine waves from lower-budget generators Protects inverters from power quality issues Charger Output Specifications: Optimized for 240 VAC power supply Nominal Battery Voltage: 48VDC Adjustable Charge Current: 0-100A at 240VAC Adjustable Charge Voltage: 43-57VDC (Default at 54VDC) Maximum Output Watts: 5120W at 240 VAC AC Input Specifications: Plug directly into a generator without concern for power issues AC Input Voltage Range: 90-264VAC Maximum Input Amps: 26A at 240VAC, 28A at 120VAC Dry Contacts: Control of generator start/stop function based on Voltage or state of charge (SOC) Using EG4 Batteries? Closed loop communication with EG4 batteries for charging based on battery state of charge (SOC), when batteries are not in communication with the inverter
