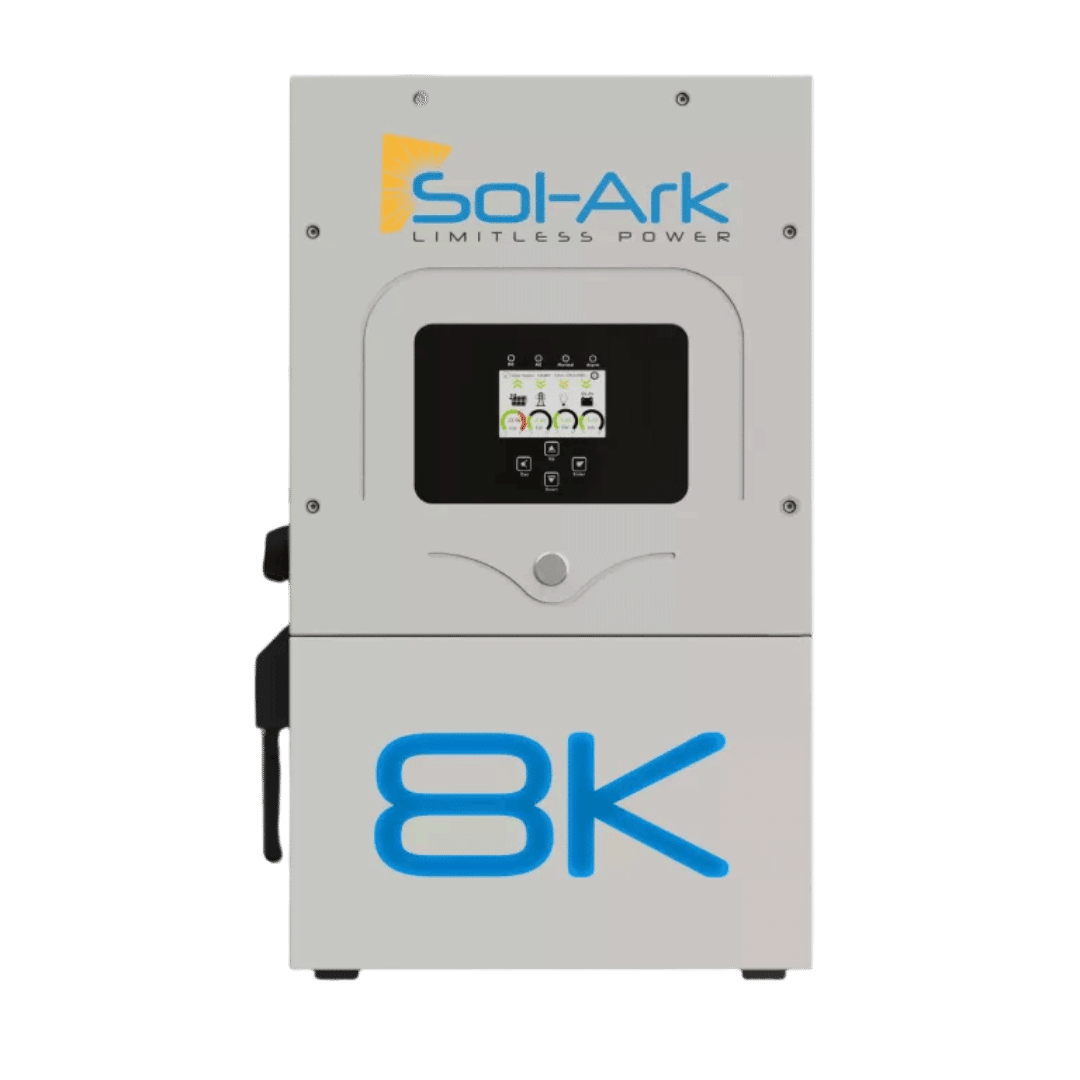

SOL-ARK 8K HYBRID SOLAR INVERTER SYSTEM Sol-Ark 8K Pre-Wired Hybrid Inverter System is a all-in-one system that includes an inverter, charger controller, a display with remote monitoring. The Sol-Ark is simple to install to a Grid-tied, Off-Grid, or Battery Backup solar system, while being able to manages power to and from Solar, Battery, Grid, Loads, and Generator. SA-8K Features: Simple to install with touchscreen interface Grid Tied Mode: Sell your power to reduce electric bill Meter Zero Mode: Zero your electric bill without a smart meter Time of Use: Use solar and batteries to minimize grid power usage Programmable Smart Load Mode DC and AC Coupling Works with a wide range of battery chemistries- Lead acid to Lithium Integrated PV DC Disconnect Switch, ground fault detection, PV rapid shutdown control(devices sold separately), PV lightning protection, PV string input reverse polarity protection, AC output breakers 63A, 250A battery breaker/disconnect, surge protection. SA-8K Specifications: AC Voltage: 120/240V split phase AC Frequency: 60/50 Hz Max Continuous AC Output Power: 8,000W Max Allowed PV Power: 11000W Solar Input Power: 9000W Number of MPPT: 2 Max Solar Strings per MPPT: 2 MPPT Voltage Range: 150-425V Max Input Current: 18 Amp (per mppt) Inverter Efficiency: 96.0% Listings & Certifications:UL1741-2010/2018, IEEE1547a-2003/2014, FCC 15 class B Weight: 75. lbs Dimensions (H x W x D): 30.0″ x 18.30″ x 10.0″ Inside the 8K box Manual WiFi Plug with screws Battery Resistors 2 Toroid Allen Key Mounting Bracket Battery Temp Sensor POWERVIEW DONGLE SOLD SEPARATELY 5 Year Standard Warranty
