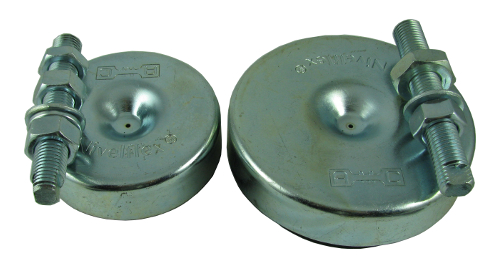

Description The levelling NFR mount comes with a tilting system accommodating uneven surfaces. The elastomer used is a mixture of oil-resistant synthetic Nitrile Butadyene Rubber (NBR). Height is adjusted by means of a screw, once the machine has been assembled. The wide contact between the base of the machine guarantees good overall stability. Lift the machine and insert the mount under it. Insert and turn the screw manually until it can be wound into the thread in the mount . Adjust the height of the machine by turning the screw. When the machine is level , lock the mounts using the checknuts. Type A(mm) B(mm) C(mm) H mm Min STATIC LOAD Nominal kg DEFLECTION mm FIG. Weight(gr) Code NFR-85 85 33 M-16 100 650 2 2 713 142009 NFR-100 100 35 M-16 100 980 2 2 929 142010 NFR-130 130 45 M-20 130 1350 3 3 1832 142011 NFR-160 160 53 M-20 130 2500 3 3 3330 142012 NFR-200 200 55 M-24 140 3700 3 1 4924 142013
