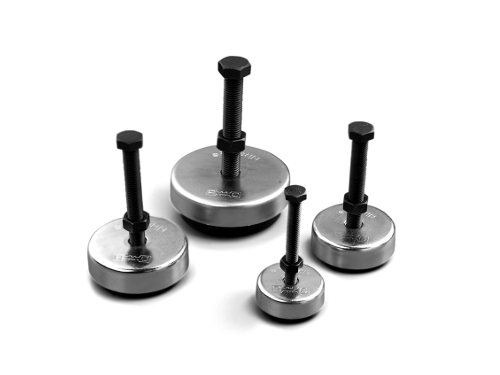

Description Levelling NF comes with a tilting system accommodating uneven surfaces. The elastomer used is a mixture of oil-resistant synthetic Nitrile Butadyene Rubber (NBR). Height is adjusted by means of a screw, once the machine has been assembled. The wide contact between the base of the machine guarantees good overall stability. Lift the machine and insert the mount under it. Insert and turn the screw manually until it can be wound into the thread in the mount . Adjust the height of the machine by turning the screw. When the machine is level , lock the mounts using the checknuts. Type A(mm) B mm Mín B mm Máx B mm Reglaje STATIC LOAD Nominal kg DEFLECTION mm Weight(gr) C(mm) H mm Min H mm Máx Code NF-65 65 27 34 7 320 2 349 M-12×1,65 105 110 142001 NF-85 85 33 46 13 650 2 732 M-16×2 114 127 142002 NF-100 100 35 48 13 980 2 960 M-16×2 120 130 142003 NF-130 130 45 58 13 2500 3 1675 M-16×1,5 67 80 142023 M-20×2,5 130 140 142004 NF-160 160 53 66 13 4000 3 3397 M-20×1,5 135 145 142026 M-20×2,5 130 140 142005 NF-200 200 55 68 13 5000 3 4958 M-24×1,5 158 176 142025 M-24×3 158 176 142006 NF-250 250 67 85 18 7000 3 8575 M-30×2 153 176 142007
