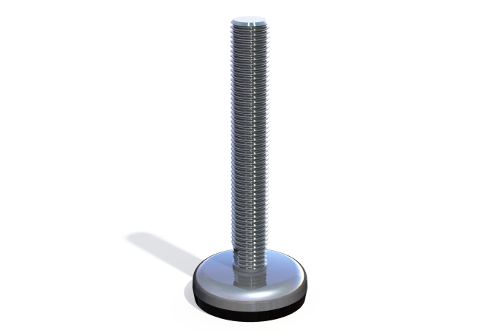

Levelling – M type NGI

$22.02 $43.82
Description The levelling M type NGI height adjustment system can be used to adjust the machines to the required level, thus insulating areas nearby from vibrations and reducing noise. Hygienic design, rounded metal parts that allow easy cleaning. The rubber compound is approved for food industry by the FDA. Type A(mm) B(mm) D(mm) Load (kg) Ø Weight(kg) Code M-50 M-10X100 106 23 M-10 400 50 0,156 159001 M-50 M-12X100 106 23 M-12 400 50 0,173 159002 M-75 M-10X100 106 24 M-10 1000 75 0,274 159003 M-75 M-12X100 106 24 M-12 1000 75 0,295 159004 M-75 M-16X100 106 24 M-16 1000 75 0,361 159005 M-75 M-16X150 147 24 M-16 1000 75 0,411 159006 M-105 M-20X150 147 32 M-20 1200 105 0,778 159010 M-100 M-12X150 147 34 M-12 2200 100 0,724 159007 M-100 M-16X150 147 34 M-16 2200 100 0,809 159008 M-100 M-20X150 147 34 M-20 2200 100 0,911 159009 M-125 M-16X150 147 39 M-16 3000 125 1,137 159011 M-125 M-20X150 147 39 M-20 3000 125 1,245 159012
