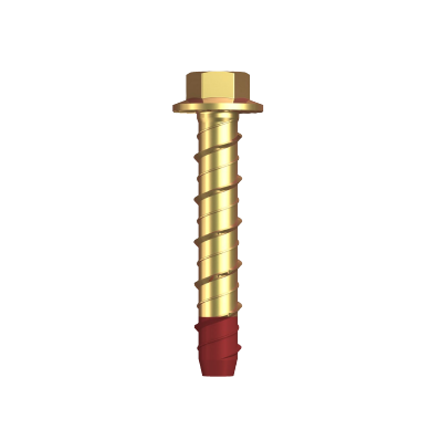

DescriptionXbolts are single unit screw type anchors that are used in solid concrete applications. Fixing is achieved by screwing the anchor into the hole. As it is screwed in, it created its own undercut by tapping the concrete hole. The cutting and locking mechanism enables the anchor to be used in close spacing and edge distance applications.ApplicationsHand rail fasteningFormwork support fasteningMechanical, electrical and pipe bracket fasteningBottom PlatesFeatures • Suitable for medium to heavy loads • Suitable for small anchor spacing and edge distance applications • Quick and easy to install • Fully removable[CLICK HERE FOR PRODUCT DATA SHEET]PartQFindDescriptionProductFinishSizeLengthMXHMSYM060030MXHMSYM060030MXH120ZYP XBOLT HEX: M6 X 30ZINC YELLOW PASSIVATEM630MXHMSYM060050MXHMSYM060050MXH121ZYP XBOLT HEX: M6 X 50ZINC YELLOW PASSIVATEM650MXHMSYM060075MXHMSYM060075MXH122ZYP XBOLT HEX: M6 X 75ZINC YELLOW PASSIVATEM675MXHMSYM060100MXHMSYM060100MXH123ZYP XBOLT HEX: M6 X 100ZINC YELLOW PASSIVATEM6100MXHMSYM050030MXHMSYM050030MXH118ZYP XBOLT HEX: M5 X 30ZINC YELLOW PASSIVATEM530MXHMSYM050050MXHMSYM050050MXH119ZYP XBOLT HEX: M5 X 50ZINC YELLOW PASSIVATEM550MXHMSYM080050MXHMSYM080050MXH124ZYP XBOLT HEX: M8 X 50ZINC YELLOW PASSIVATEM850MXHMSYM080060MXHMSYM080060MXH125ZYP XBOLT HEX: M8 X 60ZINC YELLOW PASSIVATEM860MXHMSYM080075MXHMSYM080075MXH126ZYP XBOLT HEX: M8 X 75ZINC YELLOW PASSIVATEM875MXHMSYM080100MXHMSYM080100MXH127ZYP XBOLT HEX: M8 X 100ZINC YELLOW PASSIVATEM8100MXHMSYM100060MXHMSYM100060MXH128ZYP XBOLT HEX: M10 X 60ZINC YELLOW PASSIVATEM1060MXHMSYM100075MXHMSYM100075MXH129ZYP XBOLT HEX: M10 X 75ZINC YELLOW PASSIVATEM1075MXHMSYM100100MXHMSYM100100MXH130ZYP XBOLT HEX: M10 X 100ZINC YELLOW PASSIVATEM10100MXHMSYM100120MXHMSYM100120MXH131ZYP XBOLT HEX: M10 X 120ZINC YELLOW PASSIVATEM10120MXHMSYM100150MXHMSYM100150MXH132ZYP XBOLT HEX: M10 X 150ZINC YELLOW PASSIVATEM10150MXHMSYM120075MXHMSYM120075MXH133ZYP XBOLT HEX: M12 X 75ZINC YELLOW PASSIVATEM1275MXHMSYM120100MXHMSYM120100MXH134ZYP XBOLT HEX: M12 X 100ZINC YELLOW PASSIVATEM12100MXHMSYM120150MXHMSYM120150MXH135ZYP XBOLT HEX: M12 X 150ZINC YELLOW PASSIVATEM12150MXHMSYM160100MXHMSYM160100MXH136ZYP XBOLT HEX: M16 X 100ZINC YELLOW PASSIVATEM16100MXHMSYM160150MXHMSYM160150MXH137ZYP XBOLT HEX: M16 X 150ZINC YELLOW PASSIVATEM16150
