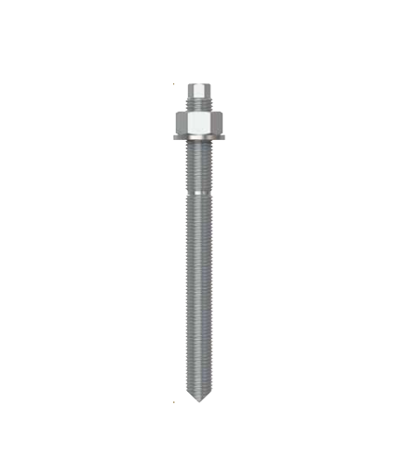

Chisel Point Chemical Stud External Hex Class 8.8 Hot Dip Galvanised

DescriptionChemical Anchor Studs are a single unit non expansion fasteners that is used in pre-drilled holes into a selected/specified resin. They comprise of a chisel or bevelled point stud available in flat cut or external hexagon type head, a nut and washer. Fixing of the stud is achieved by inserting a suitable curing resin into the hole using a glass chemical capsule or injection adhesive system. The stud is then inserted into the hole and rotated either by hammer drill (for glass capsule) or hand (for injection type) to allow for proper setting into the resin. The stud can be loaded once appropriate curing time has been achieved.Applications • Fixing to concrete or masonry substrates • Holding down machinery • Commonly used in applications that require non expansion type fasteners • Used in applications that require closer edge distance and spacingFeatures • Good load capability • Non expanding anchor • Resistant to vibration • Complete sealing of hole • Can be installed close to edge • Reduced spacing between anchors • Excellent holding power in weak base materials[CLICK HERE FOR PRODUCT DATA]PartDescriptionProductFinishSizeLenMCA88GPM120220HGAL-HX 8.8 CHEM ANCH:M12 X 220ROD CHEM ANCHOR KIT (EXT HEX)HOT DIP GALVANISEDM12220MCA88GPM120300HGAL-HX 8.8 CHEM ANCH:M12 X 300ROD CHEM ANCHOR KIT (EXT HEX)HOT DIP GALVANISEDM12300MCA88GPM160220HGAL-HX 8.8 CHEM ANCH:M16 X 220ROD CHEM ANCHOR KIT (EXT HEX)HOT DIP GALVANISEDM16220MCA88GPM160260HGAL-HX 8.8 CHEM ANCH:M16 X 260ROD CHEM ANCHOR KIT (EXT HEX)HOT DIP GALVANISEDM16260MCA88GPM160300HGAL-HX 8.8 CHEM ANCH:M16 X 300ROD CHEM ANCHOR KIT (EXT HEX)HOT DIP GALVANISEDM16300MCA88GPM160350HGAL-HX 8.8 CHEM ANCH:M16 X 350ROD CHEM ANCHOR KIT (EXT HEX)HOT DIP GALVANISEDM16350MCA88GPM160500HGAL-HX 8.8 CHEM ANCH:M16 X 500ROD CHEM ANCHOR KIT (EXT HEX)HOT DIP GALVANISEDM16500MCA88GPM200350HGAL-HX 8.8 CHEM ANCH:M20 X 350ROD CHEM ANCHOR KIT (EXT HEX)HOT DIP GALVANISEDM20350MCA88GPM200400HGAL-HX 8.8 CHEM ANCH:M20 X 400ROD CHEM ANCHOR KIT (EXT HEX)HOT DIP GALVANISEDM20400MCA88GPM200480HGAL-HX 8.8 CHEM ANCH:M20 X 480ROD CHEM ANCHOR KIT (EXT HEX)HOT DIP GALVANISEDM20480MCA88GCM120160HGAL-HX 8.8 CHEM ANCH:M12 X 160STUD CHEM ANCHOR KIT (EXT HEX)HOT DIP GALVANISEDM12160MCA88GCM160190HGAL-HX 8.8 CHEM ANCH:M16 X 190STUD CHEM ANCHOR KIT (EXT HEX)HOT DIP GALVANISEDM16190MCA88GCM200260HGAL-HX 8.8 CHEM ANCH:M20 X 260STUD CHEM ANCHOR KIT (EXT HEX)HOT DIP GALVANISEDM20260MCA88GCM240300HGAL-HX 8.8 CHEM ANCH:M24 X 300STUD CHEM ANCHOR KIT (EXT HEX)HOT DIP GALVANISEDM24300
