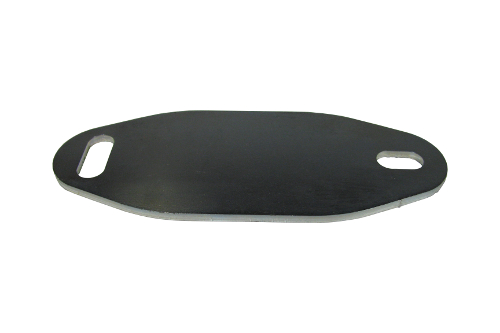

Height Adjuster – Shim

Description The Height Adjuster Shim avoids using the traditional height adjusting studs. The traditional levelling systems are subjected to cyclic bending moments and are exposed to eventual ruptures. As a result of it most of the marine certification companies do not recommend to use height adjusting studs. Reference is made to DET NORSKE VERITAS (DNV) rules for ships / high speed craft –issue January 2001, Pt.4 Ch3 Sec.1 F202. This requirement is referred to rigid mounting, but is considered applicable to this topic. Type A(mm) C(mm) D(mm) F(mm) G(mm) H(mm) I(mm) J(mm) Weight(kg) Code SMALL 120 60 100 14 11 3 14 11 – 136301 MEDIUM 183 75 140 30 13 4 13 22 – 136302 LARGE 228 112 182 34 18 5 18 26 – 136303
