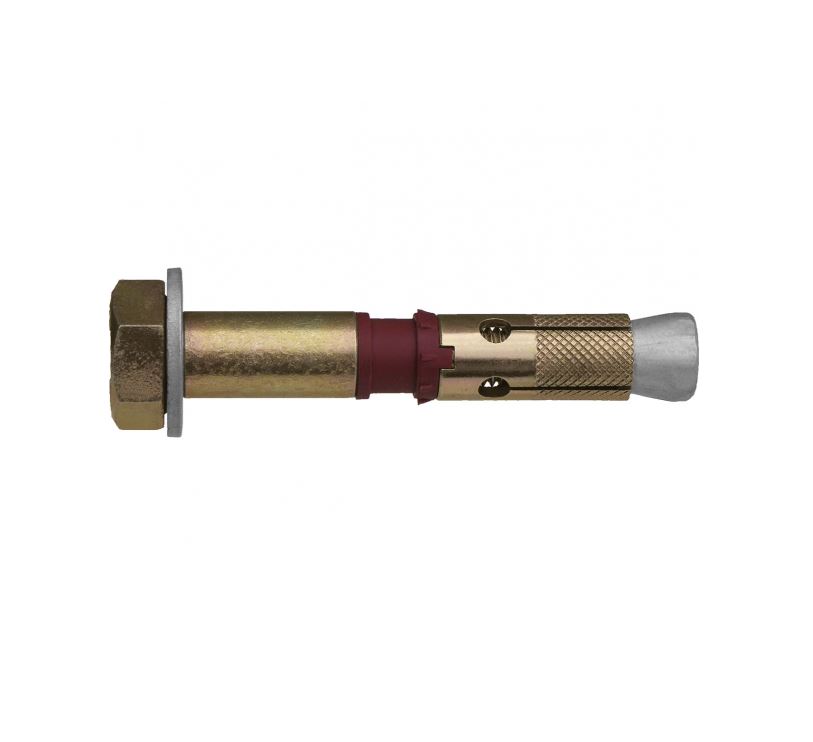

Heavy Duty Panel Brace Anchor Carbon Steel Grade 8.8 Zinc

DescriptionHeavy Duty Panel Brace Anchor Carbon Steel Grade 8.8 Zinc[CLICK HERE FOR PRODUCT DATA]Heavy-duty brace anchor for precast and tilt-up concrete wall panels. High load performance expansion anchor with high tensile and shear characteristics. Tested in accordance to AS3850.1:2015 and easily removable this anchor is specifically designed for the temporary fixture of precast and tilt-up concrete wall panels. Testing of the ICCONS® PBA20115 Panel Bracing Anchor has been conducted via an independent NATA accredited laboratory in accordance with clause A9 of AS 3850.1:2015. AS 3850:2003 was revised in 2015 and published as 3850 (Prefabricated concrete elements) Part 1 and 2. Part 1 – General requirements and Part 2 – Building construction. Testing of Brace inserts is covered in Appendix A9 of AS 3850.1:2015 and consists of a much more rigorous testing regime to that referenced in the previous AS 3850:2003. The new testing criteria assesses the performance of brace inserts for: • Static tension • Shear • Cyclic • Installation Torque
